Product Detail

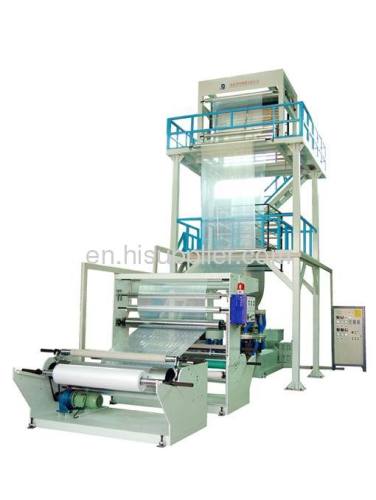

Latest HDPE/LDPE Film Blowing Machine
The products include vest bag, shopping bag, garment bag
and food bag etc--onglong Plastic Machinery Co.,Ltd
Features Specifications:Latest HDPE/LDPE Film Blowing Machine/Blown Film Machine
(Film machinery) The machine is employed to produce plastic film made of LDPE, HDPE, LLDPE, LLDPE etc. The products are widely used in application of package of civil and industrial products such as food, garment, textile and daily necessities etc. The products include vest bag, shopping bag, garment bag and food bag etc.
If you want to know more information ,pls contact me.Tancy,Skype:dlsj2015
| MODEL NO. | SJ65-FMS1500N | SJ75-FMS1700N | SJ90-FMS2000N | |
| LAYER NUMBER | 1 | |||
| MAX.FILM WIDTH | mm | 1400 | 1600 | 1900 |
| FILM THICKNESS | mm | 0.015 0.20 | 0.020 0.25 | |
| OUTPUT | kg/h | 65 | 80 | 100 |
| RAW MATERIAL | HDPE,LDPE,LLDPE | |||
| EXTRUDER | ||||
| SCREW DIAMETER | mm | Φ65 | Φ75 | Φ90 |
| SCREW L/D | 30:1 | 28:1 | 25:1 | |
| HEATER CAPACITY | kw | 16.5 | 20.7 | 24.4 |
| DRIVING MOTOR | kw | 30 | 37 | 45 |
| DIE: | ||||
| DIE DIAMETER | mm | LDPEΦ350 | LDPEΦ400 | LDPEΦ500 |
| LD&HD FREE CHOICE | HDPEΦ90Φ120 | HDPEΦ110Φ150 | HDPEΦ125Φ175 | |
| HEATER CAPACITY | kw | LDPE9.95 | LDPE11.35 | LDPE14.3 |
| HDPE:6.1 | HDPE: 6.8 | |||
| COOLING AIR BLOWER | kw | 4 | 5.5 | |
| HAUL-OFF: | ||||
| DRIVING MOTOR | kw | 2.2 | ||
| TAKE-UP SPEED | m/min | 10 50 | ||
| WINDER DRIVE MOTOR | kw | 6.6 | 8.5 | |
| TEMPERATURE CONTROL | point | 6 | 7 | |
| WHOLE POWER WITH TOTAL MACHINE | kw | 6 | ~ 84 | ~ 100 |
| SHAPE SIZE | m | 6.7 X 3.2 X 5.5 | 7.3 X 3.5 X 6.0 | 8.0 X 4.0 X 7.0 |
| WEIGHT | t | ~ 4.5 | ~ 5.5 | ~ 7.0 |
