Two Layer Co-extrusion and Rotary Die Head Film Blowing Machines

Payment Terms:	T/T,L/C,
Place of Origin:	Fujian, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 2G-SJ

Production Capacity: 15 sets/month

Delivery Date: 55 working days

Use: Film Crusher

Brand Name: donghailong

Means of Transport: Ocean,

Packing: wooden case

Plastic Type: PP/PE

Shaft Design: Double

Film blowing machine: extruder machine with rotary die head
and double winder, film blowing machine.

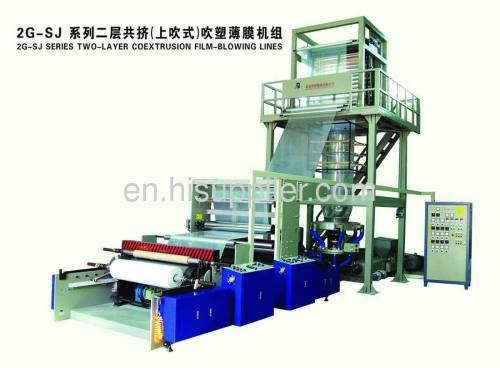

2G-SJ Series Two-layer Co-extrusion Film Blowing Machine

Feature:

The machine is applicable to LLDPE, MLLDPE and HDPE etc. It employed many technologies such as combined machine head with two-layer extrusion, head rotation, double wind gap & wind ring, speed regulation by frequency variation, tight friction winder with two work station. The machine is featured by compact structure, stable operation, high productivity, low energy construction, good stability, clear layering, good plasticization and special adhesive force etc.

Main Technical Parameters:

Model No.	2G-SJ45/45-FMJ1300	2G-SJ55/55-FMJ1500	2G-SJ65/65-FMJ1700
Layer Number	2
Max. Film Width	1200mm	1400mm	1600mm
Film Thickness	0 .025 ~ 0.25mm
Output	80kg/h	120kg/h	150kg/h
Raw Material	LDPE, LLDPE, HDPE
Screw Diameter	2 * Φ45mm	2 * Φ55mm	2 * Φ65mm
Screw L/D	30:1
Whole Power of the Machine	~ 75kw	~ 94kw	~ 127kw
Shape Size(LWH)	5.3 * 3.5 * 5.0m	6.0 * 3.8 * 6.5m	6.7 * 4.2 * 7.0m
Weight	~ 4.5t	~ 6.0t	~ 7.5t

Donglong Plastic Machinery is speciallized in producing all kinds of film blowing machine,stretch film machine,bag making machine and plastic recycling machine.If you are interested,pls contact me.Tancy.Skype:dlsj2015.Thanks,
