Donglong Plastic Machinery Co.,Ltd
|
Newest HDPE High Speed Film Blowing Machine/Plastic Machine
| Payment Terms: | T/T,L/C, |
| Place of Origin: | Fujian, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Newest HDPE Film Blowing Machine/Plastic Machine/Film Extruder for plastic film
For all kinds of bags

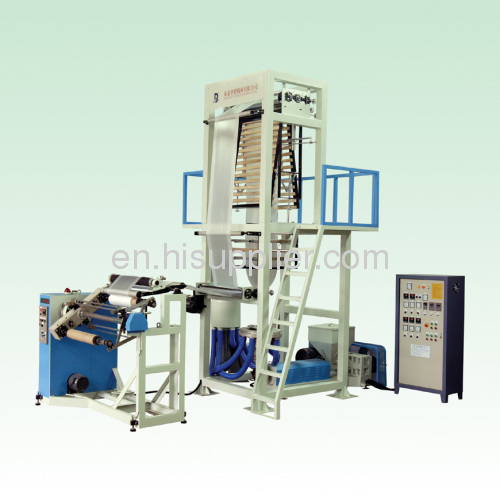

SJ-H Series High Speed HDPE Film Blowing Machine/plastic machine
This line is special design for plastic film made of high density polyethylene(HDPE).The products are widely used in application package of civil and industrial products such as food,
garment, textile and daily necessities. The products include vest bag, shopping bag, garment bag,food bag etc.
Main technical parameters:
Material: HDPE
Max. Folded Film Width: 700mm
Film Thickness: 0.008~0.15mm
Max. Extrusion Output: 45kg/h
(1)EXTRUDER
Screw diameter: Φ45mm
Screw L/D Length: 28:1
Screw material: 38CrMoAl-A
Cylinder material: 38CrMoAl-A
Main Motor: 15kw(controlled by inverter)
(2)DIE
Die size: HDPE Φ60mmΦ80mm+Ralative HDPE Air Ring
Heater Capacity: 3.45kw
Air Cooling Power: 2.2kw
(3)TAKE-UP UNIT
Take-up unit: controlled by Inverter Motor
Roller width: 850mm
Effective width: 700mm
Take-up speed: 10~100m/min
Driving motor: 1.5kw
(4)WINDER UNIT
Winder Type: Single work station auto. winder
Winding motor: 10~100m/min
Temperature Control: 6point
Whole power of machine: ~32kw
Weight: 2000kg
Shape size: (LXWXH)4.5X2.5X4.0m
Donglong Plastic Machine Co.,Ltd was established in 1994.We are major in producing all kinds of film blowing machine.If you are need or interested,pls contact me.Tancy.Skype:dlsj2015.Thanks.
