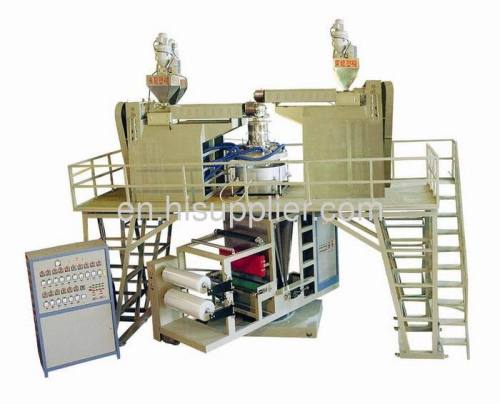

Three-layer Co-extrusion Down-ward Water-cooled PP Film Blowing Machine
| Payment Terms: | T/T,L/C, |
| Place of Origin: | Fujian, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
PP/LLDPE/MLLDPE/LDPE
*With Three-layer extrusion,lower blowing water(rapid)cooling,rotating haul-off.
Medical film machine
FEATURES:
1. The machine employs some new technologies such as combined machine head with three-layer extrusion,lower blowing water(rapid)cooling,rotating haul-off.It is applicable to PP,MLLDPE,LLDPE,LDPE and terpolymer PP to produce the packing film and compound packing material with good insulation,sealing,transparency,light sheltering,cooking,fresh-keeping,hot-sealing,and printing and other performance.
2.The film has taken the place of most of CPP and BOPP plastic films and provides economical plastic packing film with multi-layer extrusion for the food,agricultural by-products,medical products,pesticide,chemical products,daily necessities and military products etc.
MAIN TECHNICAL PARAMETERS:
| Model | 3G-XSJ45-FMJ100 | 3G-XSJ55-FMJ1200 | 3G-XSJ65-FMJ1500 |
| Max.Folded Film Width | 800mm | 1000mm | 1300mm |
| Film Thickness | 0.02~0.20mm | 0.02~0.20mm | 0.02~0.20mm |
| Output | 80kg/h | 110kg/h | 150kg/h |
| Raw Material | PP/LDPE/LLDPE/EVA | PP/LDPE/LLDPE/EVA | PP/LDPE/LLDPE/EVA |
| Screw Diameter | 3*Φ45mm | 3*Φ55mm | 3*Φ65mm |
| Screw L/D | 28:1 | 28:1 | 28:1 |
| Total Power of the Machine | ~100kw | ~120kw | ~140kw |
| Shape Size(L*W*H) | 6.5*3.0*6.0m | 7.2*3.5*7.0m | 8.2*4.0*7.5m |
| Weight | ~7000kg | ~8500kg | ~10000kg |
Correct specifications depend on the actual model all specifications are subject to change without prior notice.
Donglong Plastic Machinery Co.,Ltd is major in producing all kinds of film blowing machine,stretch film machine,bag making machine and plastic recycling machine.If you are interested,pls contact me.Tancy.Skype:dlsj2015.Thanks.
